In every corner of the world, there are Parat Halvorsen steam and heat systems in use every day. Quality and reliability have brought us where we are today.

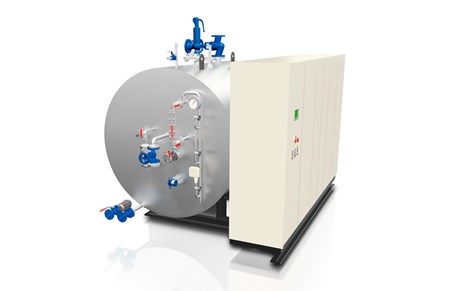

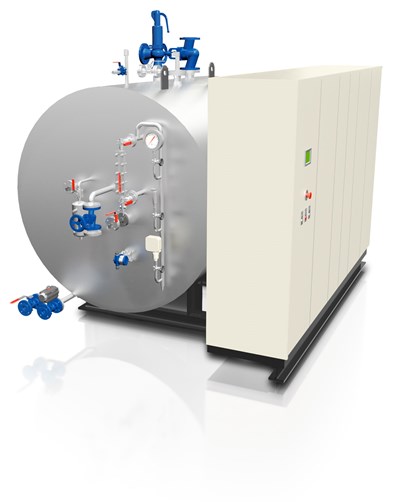

Low Voltage Electrical Boiler

References

If you choose an Electrical Boiler for Steam or Hot water from PARAT Halvorsen AS, you get the market's most modern Electrical boiler.

The benefits of electric boilers are many; energy price, no emissions, low noise in the boiler house, good regulation capabilities and low minimum load. The advantage of choosing a supplier that has an in-house developed boiler is that these can easily be adapted to detailed customer needs and ensure a smooth integration in any boiler house.

The electric boilers from PARAT are divided into two product groups, high voltage (IEH) and low voltage (IEL). Low voltage is normally supplied for 230V, 400V or 690V, while high voltage is normally supplied for 6kV - 24kV. Within our product range, we can supply boilers from 15 to 60,000kW.


Here are some of our latest Low Voltage Electrical Boiler references:



Bakers Martens, NO. Capacity: 700kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.

Takeda Nycomed Asker, NO. Capacity: 1250kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.

Universitetet NMBU, NO. Capacity: 200kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.

Jotun, NO. Capacity: 2000kW. Steam: 191°C. Power: 690V. Pressure: 12 barg.

Norgesmøllene, NO. Capacity: 1200kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.

Bakers Oslo, NO. Capacity: 1300kW. Steam: 143°C. Power: 400V. Pressure: 3 barg.

Nye Kirkenes Sykehus, NO. Capacity: 300kW. Steam: 188°C. Power: 400V. Pressure: 11 barg.

Lilleborg / Orkla, NO. Capacity: 250kW. Steam: 188°C. Power: 400V. Pressure: 11 barg.

Goman Bakeriet Trondheim, NO. Capacity: 300kW. Steam: 143°C. Power: 400V. Pressure: 3 barg.

Hunton, NO. Capacity: 3200kW. Steam: 210°C. Power: 690V. Pressure: 18 barg.

Justsen, NO. Capacity: 1000kW. Hot Water: 120°C. Power: 400V. Pressure: 6 barg.

Røros Meieriet, NO. Capacity: 1350kW. Steam: 184°C. Power: 690V. Pressure: 10 barg.

Bakehuset Lillesand, NO. Capacity: 700kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.

AF Energi, NO. Capacity: 750kW. Hot Water: 100°C. Power: 400V. Pressure: 8 barg.

Lofot Entreprenør, NO. Capacity: 250kW. Steam: 158°C. Power: 400V. Pressure: 5 barg.

Graff Brygghus, NO. Capacity: 300kW. Steam: 158°C. Power: 400V. Pressure: 5 barg.

Varma & Velaverk ehf, IS. Capacity: 1400kW. Steam: 191°C. Power: 690V. Pressure: 12 barg.

Skala AS, NO. Capacity: 1500kW. Hot Water: 130°C. Power: 690V. Pressure: 4 barg.

Nortura Sogndal, NO. Capacity: 2000kW. Steam: 151°C. Power: 690V. Pressure: 4 barg.

Tine Sømna, NO. Capacity: 3000kW. Steam: 184°C. Power: 690V. Pressure: 10 barg.



Bakers Martens, NO. Capacity: 700kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.



Takeda Nycomed Asker, NO. Capacity: 1250kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.



Universitetet NMBU, NO. Capacity: 200kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.



Jotun, NO. Capacity: 2000kW. Steam: 191°C. Power: 690V. Pressure: 12 barg.



Norgesmøllene, NO. Capacity: 1200kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.



Bakers Oslo, NO. Capacity: 1300kW. Steam: 143°C. Power: 400V. Pressure: 3 barg.



Nye Kirkenes Sykehus, NO. Capacity: 300kW. Steam: 188°C. Power: 400V. Pressure: 11 barg.



Lilleborg / Orkla, NO. Capacity: 250kW. Steam: 188°C. Power: 400V. Pressure: 11 barg.



Goman Bakeriet Trondheim, NO. Capacity: 300kW. Steam: 143°C. Power: 400V. Pressure: 3 barg.



Hunton, NO. Capacity: 3200kW. Steam: 210°C. Power: 690V. Pressure: 18 barg.



Justsen, NO. Capacity: 1000kW. Hot Water: 120°C. Power: 400V. Pressure: 6 barg.



Røros Meieriet, NO. Capacity: 1350kW. Steam: 184°C. Power: 690V. Pressure: 10 barg.



Bakehuset Lillesand, NO. Capacity: 700kW. Steam: 184°C. Power: 400V. Pressure: 10 barg.



AF Energi, NO. Capacity: 750kW. Hot Water: 100°C. Power: 400V. Pressure: 8 barg.



Lofot Entreprenør, NO. Capacity: 250kW. Steam: 158°C. Power: 400V. Pressure: 5 barg.



Graff Brygghus, NO. Capacity: 300kW. Steam: 158°C. Power: 400V. Pressure: 5 barg.



Varma & Velaverk ehf, IS. Capacity: 1400kW. Steam: 191°C. Power: 690V. Pressure: 12 barg.



Skala AS, NO. Capacity: 1500kW. Hot Water: 130°C. Power: 690V. Pressure: 4 barg.



Nortura Sogndal, NO. Capacity: 2000kW. Steam: 151°C. Power: 690V. Pressure: 4 barg.



Tine Sømna, NO. Capacity: 3000kW. Steam: 184°C. Power: 690V. Pressure: 10 barg.

More information:
Espen Nygaard
Sales and Project Engineer
sales@parat.no
+47 99 48 55 28
PARAT IEL
Electric Element Boiler, Low Voltage
