High Voltage Electrode Boiler



PARAT MEH

The PARAT High Voltage electrode boiler can be delivered with a capacity
up to 60 MW. With our 40 years of experience in marine boilers we have
made a rugged design that fulfills all class requirements. The new
electrode system for marine use, is a result of many years of experience
combined with an innovative design.

The high voltage electrode boiler is extremely compact. The cost savings
on ships are also significant, since no transformer or low voltage cables
are needed.

The electrical control panel includes a complete safety and control system.
This system is based on Siemens SIMATIC S7 system with a touch panel
for local operation. Communication with the ships main control system is
possible as well, from analog and digital signals to bus systems as
PROFIBUS and MODBUS. The safety system is independent the PLC system.

Techical Description of Electrode Boiler
Read more about the High Voltage Electrode Steam and Hot Water Boiler here.


MEH technical data. Parat produces Electrode Boilers, High Voltage, Marine edition. Worldwide delivery.



Steam Boiler:

Capacity (MW) 0-5 0-15 0-30 0-45 0-60
Steam (t/h) 7,5 22,5 45 67,5 90

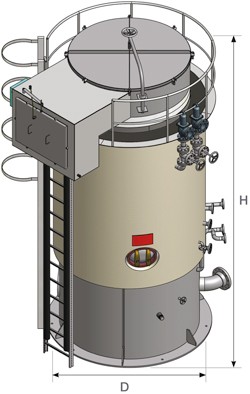

D (mm) 2.100 2.350 3.000 3.600 3.700
H (mm)* 4.800 5.800 6.700 7.000 7.400
Transport weight (kg) 6.500 8.000 13.500 20.000 23.000
Operation weight (kg) 8.500 11.000 21.500 34.000 38.000
Test weight (kg) 13.800 21.000 38.500 60.000 66.000

Weight data is given for 16 barg design pressure. Size based on 10kV. Steam based on 100°C Feedwater temperature. Changes may occur.

* If circulation pumps are placed at same level as boiler, an additional height must be added for pump NPSH.

Hot Water Boiler:

Capacity (MW)

0-5

0-15 0-30 0-45 0-60

D (mm)

2.100 2.350 2.700 3.100 3.500

H (mm)

4.500 5.300 5.800 6.400 6.550

Transport weight (kg)

4.500 6.000 9.500 15.000 16.000

Operating weight (kg)

7.000 9.500 14.000 24.500 25.000

Test weight (kg)

12.500 17.500 26.500 40.700 46.000

Weight data is given for 6 barg design pressure. Size based on 10kV. Changes may occur.

For more information

Anita Johannessen

Head of Sales and Project dept.

Telephone: +47 99 48 55 14

E-mail: aba@parat.no

Parat MEH

Download datasheet
pdf
